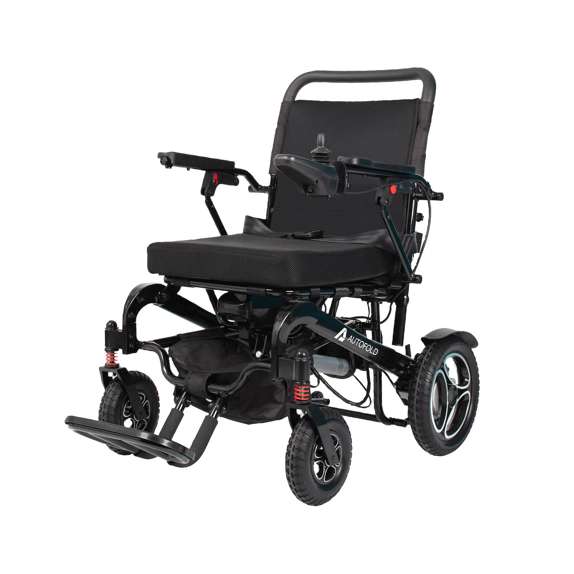

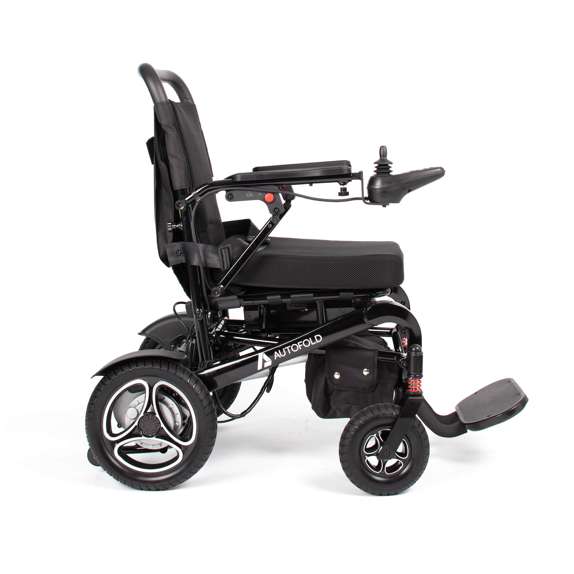

AutoFold Powerchair

• New electric Autofolding function, provides effortless folding and unfolding

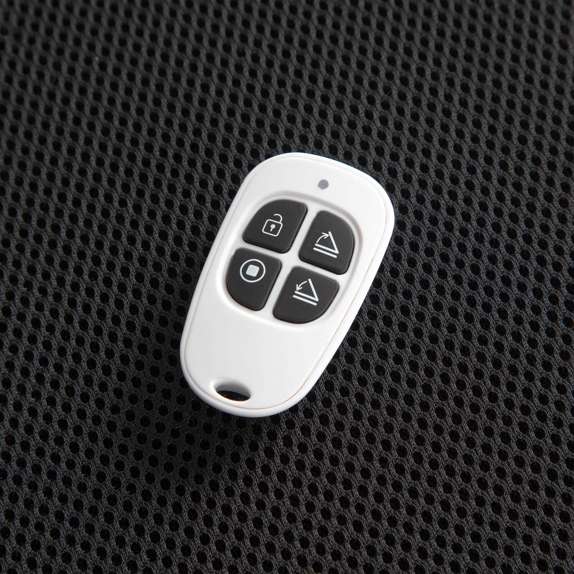

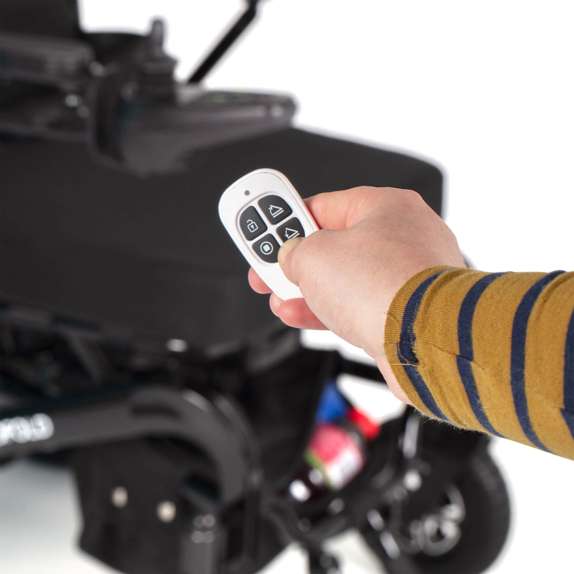

• Remote control fob operation, backed up with a switch on the rear of the powerchair

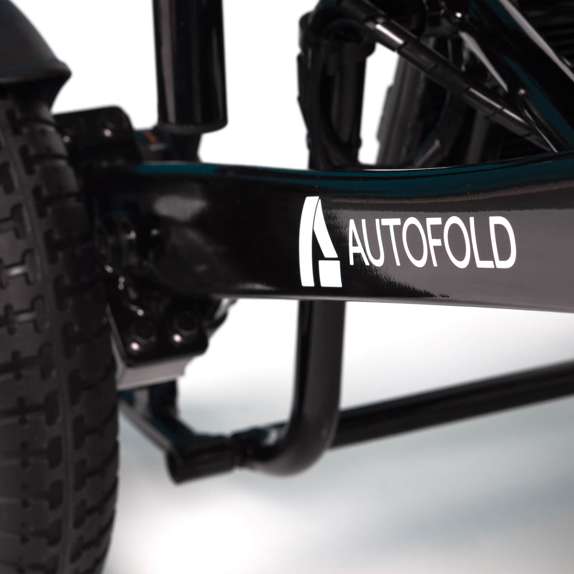

• Striking black Aluminium alloy frame, weighing only 28kg (excluding batteries)

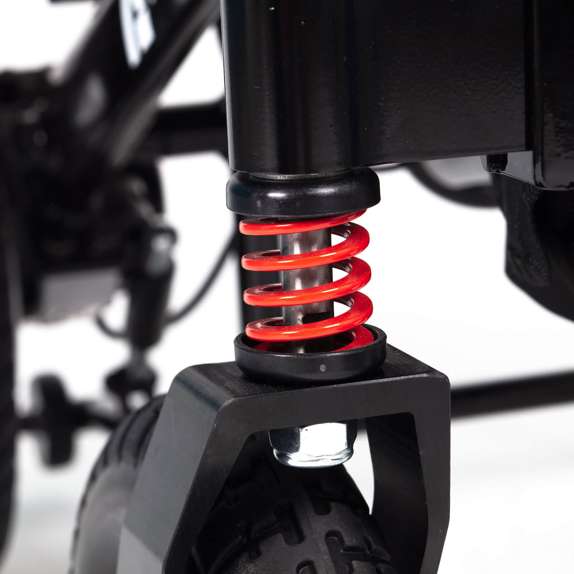

• Front suspension for extra comfort

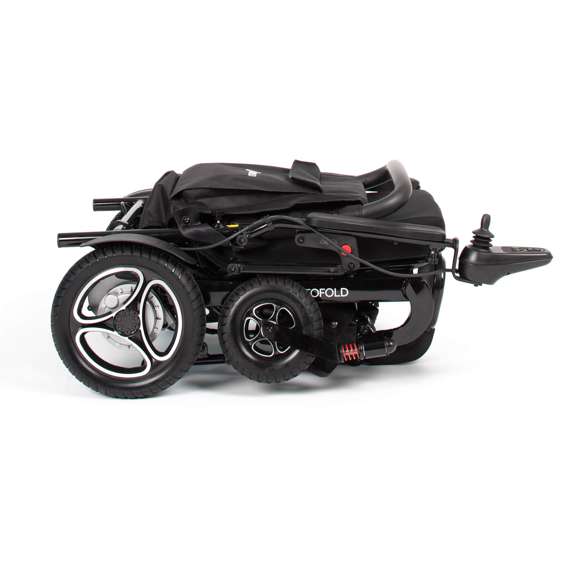

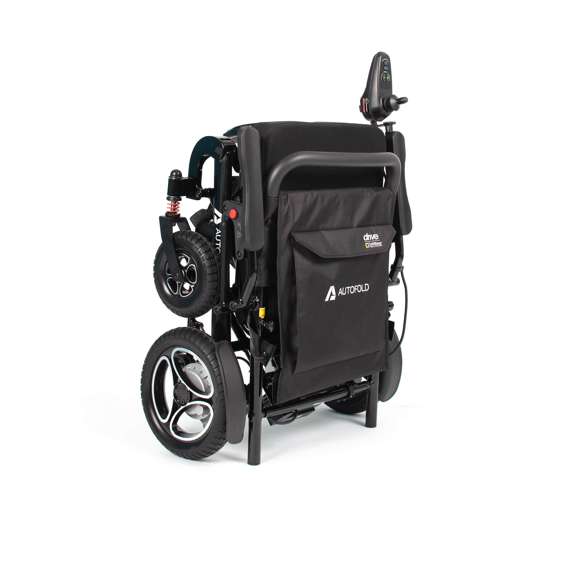

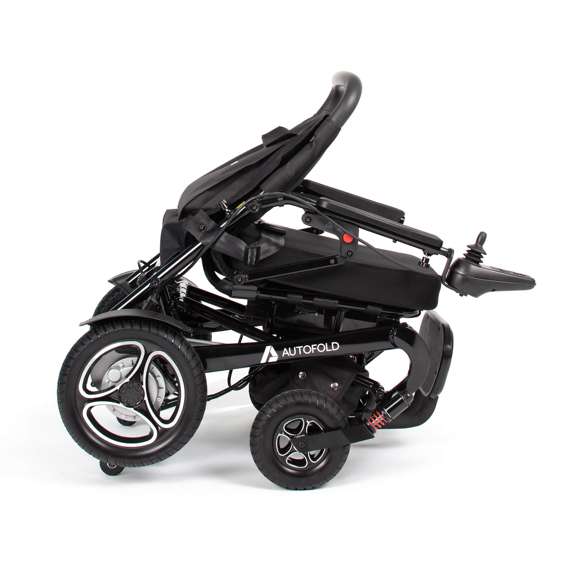

• Folds to an excellent compact size, ideal for car, train, coach, and airplane travel

• Underseat bag as standard for easy to reach storage of your valuables, as well as a backrest pouch for additional items

• Height adjustable backrest

• Max Speed 4mph* and a maximum range of 7.5miles (12km)*

• Comfortable and removable seat cushion & padded backrest

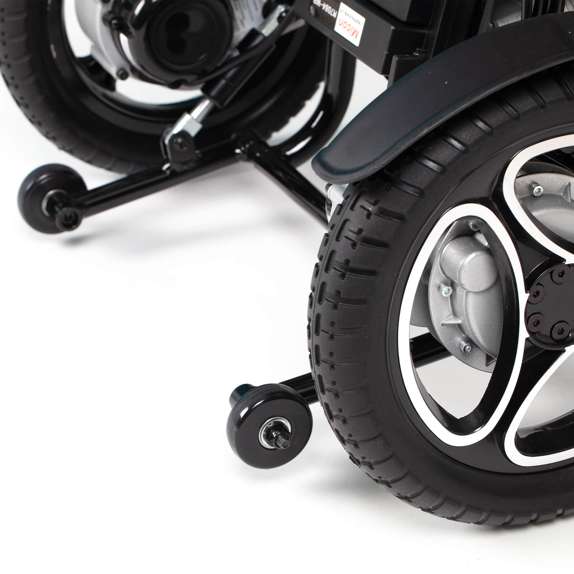

• Anti-Tip wheels and Lap belt for added safety and security

• Angle adjustable and flip up armrest

• Flip up footrest

• Intelligent Joystick controller includes speed and battery gauges, speed control and horn

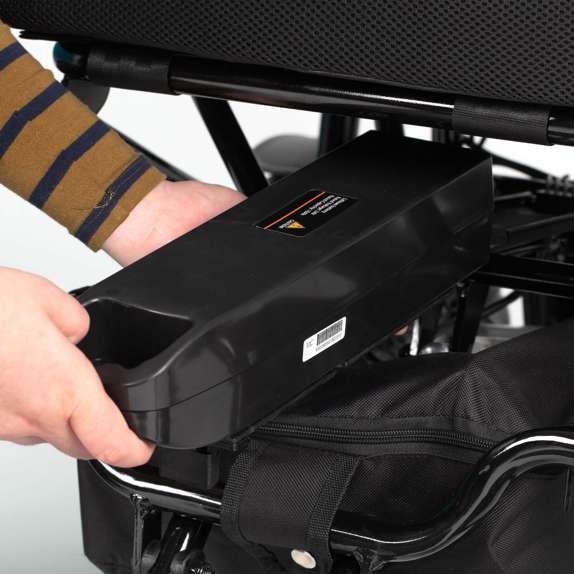

• Easy to remove lightweight lithium battery pack

• On or off board charging

• Linix brushless DC motors for quality and confidence

• 24V 10Ah lithium battery (only requires one battery) with 3-pin charging port

• Stylish Black Alloy wheels hubs with puncture proof PU tyres

• Electromagnetic brakes

• Ground Clearance 6.5cm (measured at lowest point of rear frame)

• Minimum Turning Radius 100 cm (39”)

• Max climbing angle 6°

• Max user weight 150kg (23.6st)

• Spare batteries available providing additional range

SKU	AFPC17BLK
Label	AutoFold Powerchair
Height	98cm (38.6″)
Width	63cm (24.8″)
Length	101cm (39.8″)
Seat Height	51cm (20″)
Seat Depth	44cm (17.3″)
Seat Width	44cm (17.3″)
Backrest Height	48–58cm (18.8–22.8″)
Backrest Width	45.5cm (17.9″)
Battery Type	24V 10Ah LG lithium
Battery Included	Yes
Battery Cell Type	Lithium
Charging Options	On-board / Off-board
Barcode	5055785721089
Ground Clearance	6.5cm (2.6″)
Max Gradient	6°
Motors	Linix brushless DC
Number of Batteries	1
Product Weight	29.8kg
User Weight Capacity	150kg (23.6st)
